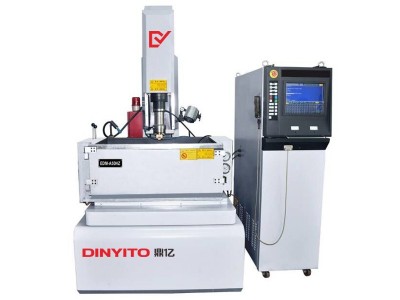

Mirror spark machine A30
X-axis: 300mm

Y axis: 210mm

Z axis: 270mm

Current: 40A

Workbench size: 600*400mm

Maximum workpiece size: 1300*1300*2241mm

Standard welding process: copper/steel, fine copper/steel, graphite/steel, copper-tungsten/steel, fine copper-tungsten/steel, steel/steel, copper-tungsten/hard alloy, copper/aluminum, graphite/heat-resistant alloy, graphite/titanium, copper/copper
Contact Us

Customer benefits


nameunitSpecifications
Mirror spark machinemmCNC-A30
working desk sizemm600*400
X.*Y*Z axis travelmm300*210*270
Internal dimensions of processing tank (length*width*height)mm950*620*360
Liquid level adjustment rangemm48-198
Maximum capacity of processing fluid tankL152
Maximum electrode weightKG25
Maximum workpiece sizemm900*585*270
Maximum workpiece weightKG300
The minimum distance from the work surface to the electrode platemm295-565
Machine tool dimensions (length*width*height)mm1300*1300*2241
Machine weight (excluding CNC power supply)KG2000
Overall dimensions (length*width*height)mm1560*700*1037
Liquid storage tank capacity Processing fluid filtration methodL400 exchangeable paper filter
CNC pulse power supply device
A40
Maximum processing currentA40
Total input powerKVA9
Input PowerV380
Optimum surface roughnessumRa0.1
Minimum electrode loss
0.10%
Highest productivitymm3/min500
Standard cutting process
Copper/steel, fine copper/steel, graphite/steel, copper tungsten/steel, fine copper tungsten/steel, steel/steel, copper tungsten/hard alloy, copper/aluminum, graphite/heat-resistant alloy, graphite/titanium, copper/copper
Interpolation method
Straight line, circle, spiral
Compensation of each axis
Each axis performs step error compensation and gap compensation respectively
Maximum number of controlled axes
Axis three-linkage (standard), four-axis four-linkage (optional
Axis division rateum0.4
Minimum drive unitum1
Input
Touch screen, disk, RS-232
Display method
15 LCD screen (TFT-LCD
Hand control box
Standard jog
Position command mode
Absolute and incremental
