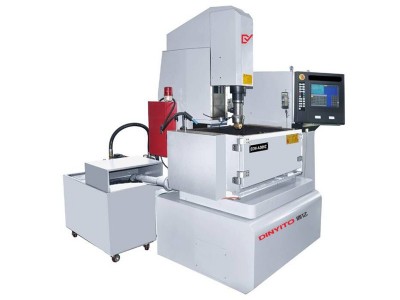

Mirror spark machine
X-axis: 400mm

Y axis: 300mm

Z axis: 320mm

Current: 50A

Workbench size: 700*400mm

Maximum workpiece size: 1300*1300*2241mm

Standard welding process: copper/steel, fine copper/steel, graphite/steel, copper-tungsten/steel, fine copper-tungsten/steel, steel/steel, copper-tungsten/hard alloy, copper/aluminum, graphite/heat-resistant alloy, graphite/titanium, copper/copper
Contact Us

Customer benefits


nameunitSpecifications
Mirror spark machinemmCNC-A40
working desk sizemm700*400
X.*Y*Z axis travelmm400*300*320
Internal dimensions of processing tank (length*width*height)mm1100*660*310
Liquid level adjustment rangemm110-300
Maximum capacity of processing fluid tankL235
Maximum electrode weightKG50
Maximum workpiece sizemm1000*650*300
Maximum workpiece weightKG400
The minimum distance from the work surface to the electrode platemm330-660
Machine tool dimensions (length*width*height)mm140*1600*2340
Machine weight (excluding CNC power supply)KG2350
Overall dimensions (length*width*height)mm1250*1450*1024
Liquid storage tank capacity Processing fluid filtration methodL600  exchangeable paper filter
CNC pulse power supply device
A40
Maximum processing currentA50
Total input powerKVA9
Input PowerV380
Optimum surface roughnessumRa0.1
Minimum electrode loss
0.10%
Highest productivitymm3/min500
Standard cutting process
Copper/steel, fine copper/steel, graphite/steel, copper tungsten/steel, fine copper tungsten/steel, steel/steel, copper tungsten/hard alloy, copper/aluminum, graphite/heat-resistant alloy, graphite/titanium, copper/copper
Interpolation method
Straight line, circle, spiral
Compensation of each axis
Each axis performs step error compensation and gap compensation respectively
Maximum number of controlled axes
Axis three-linkage (standard), four-axis four-linkage (optional
Axis division rateum0.4
Minimum drive unitum1
Input
Touch screen, disk, RS-232
Display method
15 LCD screen (TFT-LCD
Hand control box
Standard jog
Position command mode
Absolute and incremental
