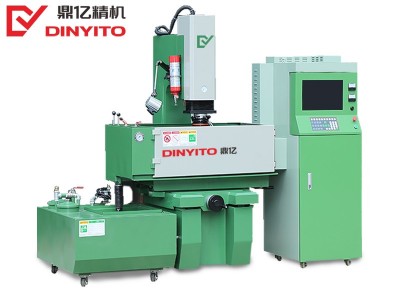

ZNC540 Spark Machine
X-axis: 500mm

Y axis: 400mm

Z axis: 210mm

Z1 axis: 300mm

Workbench size: 840*460mm

Maximum workpiece size: 1130*720*620mm

Application industries: Mainly used in hardware, toys, aerospace, military industry, automobile, electronics, plastic and metal molds, mold manufacturing and precision parts processing industries
Contact Us

Customer benefits


Model SpecificationsZNC-540Electric box specificationsZNC electric box specifications
Left and right travel (mm)X axis = 500Screen display15" CRT, color
Front and rear distance (mm)Y axis = 450Control SystemIndustrial grade computer
Spindle travel (mm)Z axis = 210(Remote control) shift rate0.005m(per unit)X1,X5,X10
Head travel (mm)Z 1 axis = 300Program archive storage60 groups
Workbench size (mm)840*460Maximum processing current (A)50 60 100
Electrode load (mm)120Input power (KVA)4.5 6 10
Workpiece load (mm)1300Maximum processing speed (mm/min)360 560 700
Maximum workpiece size (mn1130*720*620Best surface finish (M Ra)0.18
Oil tank outer diameter(m)1420*840*550Dimensions (mm)860*720*1950
Oil tank outer diameter (mm)1300*980*560Packing size (mm)900*1000*2090
Fuel tank capacity (L)500Net weight (Kg)210
Machine weight(KG)2400Processing setting group number1


Processing setting number of sections10


Processing methodsProcessing Up, Processing Down


Shaking methodnone


Maximum number of holes processed continuously1
