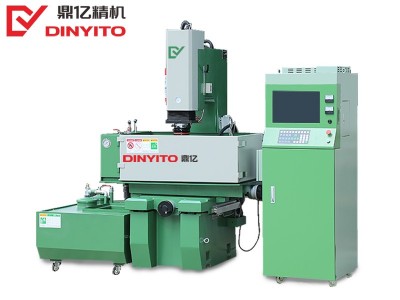

ZNC750 Spark Machine
X-axis: 700mm

Y-axis: 500mm

Z-axis: 300mm

Z1-axis: 400mm

Workbench size: 1100*600mm

Maximum workpiece size: 1650*1100*900mm

Application industries: Mainly used in hardware, toys, aerospace, military industry, automobiles, electronics, plastic and metal molds, mold manufacturing and precision parts processing industries
Contact Us

Customer benefits

Model SpecificationsZNC-750Electric box specificationsZNC electric box specifications
Left and right travel (mm)X axis = 700Screen display15" CRT, color
Front and rear distance (mm)Y axis = 500Control SystemIndustrial grade computer
Spindle travel (mm)Z axis = 300 (Remote control) shift rate0.005m(per unit)X1,X5,X10
Head travel (mm)Z 1 axis = 400 Program archive storage60 groups
Workbench size (mm)1100*600Maximum processing current (A)50 60 100
Electrode load (mm)300Input power (KVA)4.5 6 10
Workpiece load (mm)2000Maximum processing speed (mm/min)360 560 700
Maximum workpiece size (mn1650*1100*900Best surface finish (M Ra)0.18
Oil tank outer diameter(m)2000*1100*600Dimensions (mm)860*720*1950
Oil tank outer diameter (mm)1800*1250*450Packing size (mm)900*1000*2090
Fuel tank capacity (L)800Net weight (Kg)210
Machine weight(KG)4000Processing setting group number1


Processing setting number of sections10


Processing methodsProcessing Up, Processing Down


Shaking methodnone


Maximum number of holes processed continuously1
